Uses of the product
The frame is for the production of 20-100g/squ.m water soluble non woven fabrics which used as linings of garments and embroideries. The raw materials are treated by the process of opening and blending, material supplying, carding, net spreading, open-end netting, glue dipping, drying, ironing, fabric storing, calendaring and fabric rolling.

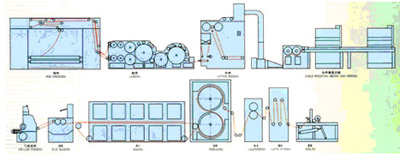

The combined frame is consist of Machines of opening and blending, material supplying, carding, net spreading, open-end netting, dipping, drying, ironing, fabric storing, calendaring and fabric rolling.

Main technical data and specifications of the frame Metric width:2200mm
Guiding roller width:2550mm
Speed of the frame:：10－30m／min
Specification of the finished product: Sticky linings of 20-100g/squ.m
Max.Width:2200mm
Max. diameter of a roll:φ1000mm
heated by：heat-conducted oil、steam and natural gas
General power：180KW
