Name:Model YG982 YG982X Standard Light Source Box
Keywords:Standard Light Source Box,Textile Instrument,Textile Testing Instrument
Description

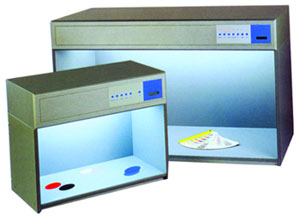

Model YG982X Standard Light Source Box is used for color matching in the industries of textiles, prints, dyestuffs, paint and plastic and for the assessment of color fastness and degree of metamer.
Standards：FZ/T01047；BS950；DIN6173；ASTM D1729 etc.
Main Technical Data
| Model： | YG982-4 | YG982-5 | YG982-6 | YG982X | |
| Light sources | D65 | 20W×2 | 20W×2 | 20W×2 | 40W×2 |
| TL84 | 20W×2 | 20W×2 | 20W×2 | 40W×2 | |
| UV | 20W×1 | 20W×1 | 20W×1 | 60W×1 | |
| F/A | 60W×4 | 60W×4 | 60W×4 | 300W×4 | |
| CWF | 20W×2 | 20W×2 | 40W×2 | ||
| TL83/U30 | 20W×2 | 40W×2 | |||
| External dimensions： | 770×620×300mm (L×W×H) | 1300×780×1160mm (L×W×H) | |||
| Weight： | 30kg | 70kg | |||
| Power source： | AC220V 50Hz | ||||
 |
 |
