Instrument Application

Used for testing the fuzzing and pilling of all kinds of fabrics to evaluate  the product quality and process .

Applicable standards

GB/T4802.1、FZ/T98022-2021、DIN53863.2、KS K0501、KS K0502等。

Product Features:

Color touchscreen LCD control, adjustable cycle count from 1 to 9999, with precise and controllable speed.
1,Motion Trace: Φ40mm circular locus
2,Effective height of the brush:
Adjustable from 2 to 12mm (Variable)
3,Sample Pressure: 100cN, 490cN, 290cN (combination)
4,External Dimensions: L540 × W250 × H345mm
5,Weight: 40kg
6,Power Source: AC220V 50Hz

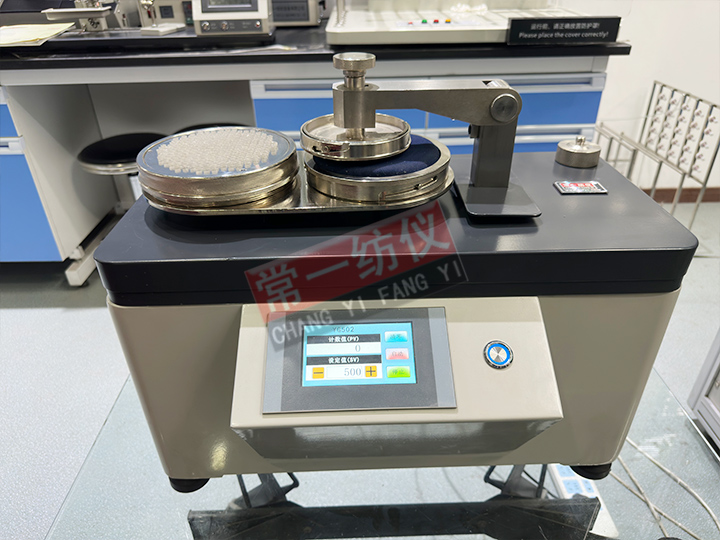

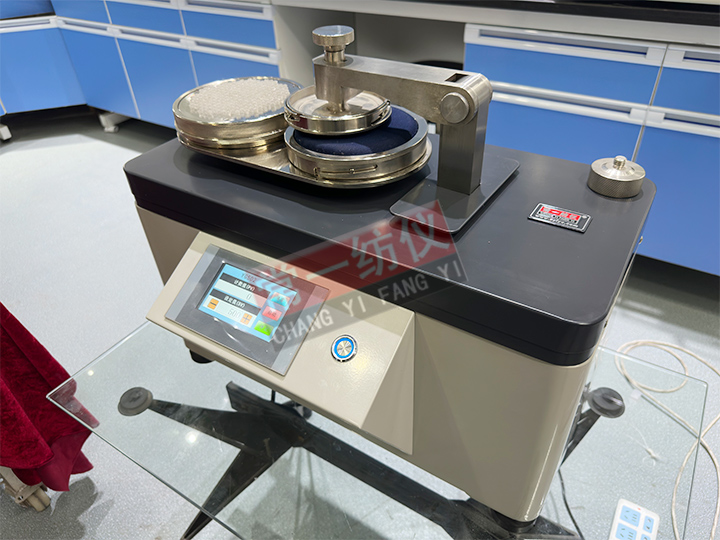

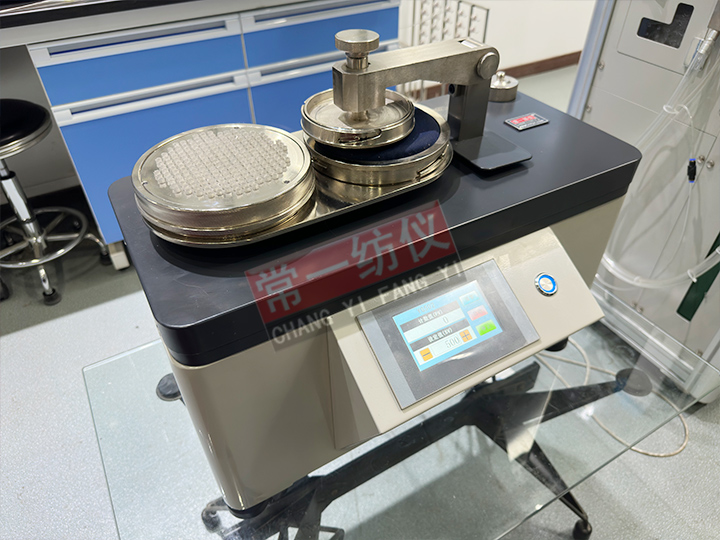

Instrument Exterior Image
