Instrument Use
can be widely applied to the tensile test of various chemical fibers, wool, cotton and other single fibers. The breaking strength, elongation at break, fixed elongation load, fixed load elongation, modulus of elasticity and other performance indexes of various fibers. Under the condition of not exceeding the strength range of this instrument, it can also be used for the test of some non-textile fibers.

Applicable Standards
GB/T14337、GB/T13835.5、GB/T21120-2007
ISO5079、ISO11566、ASTM D3822、BS4029

Main Technical Data
1, test function: tensile rupture test (program and fixture), fixed-speed tensile, fixed elongation load, fixed load elongation, modulus of elasticity.
Maximum strength range are: 100CN, 200CN, 300CN, 500CN, 1000CN. range 2-120%, index value: 0.1cN (50cN the following index value is 0.01cN), precision: ≤ ± 0.5%, load resolution: 1/50000, sensor accuracy: ≤ ± 0.05% FS
Clamping distance minimum: 10MM Stepless adjustable, digital setting, automatic positioning.
Tension speed: 2-200MM/MIN, index value: 1MM/MIN, precision: 1%
Response speed: 2-200MM/MIN, index value: 1MM/MIN, precision: 1%
Effective dynamic range: 100MM/150MM, elongation resolution: 0.1MM
2, a variety of national standards, unit switching, please select:
GB,ISO,AATCC,BS, DIN,JIS etc. GB,ISO,AATCC,BS,DIN,JIS,etc.N,CN,KG,LB,IN,etc.
3、Above test function is manual clamping
4、Power supply: 220V, 50HZ, 200W
5、Weight: 35KG
6、Dimensions: 370×300×550mm

Configuration options:
1, ordinary type: desktop host, large screen Chinese LCD, with data storage, retrieval, statistics, printing functions, can be independently configured EPSON300K printer, printout test data report.
Data statistics include: strength, elongation, elongation, breaking time, breaking
power, breaking strength of the maximum value, minimum value, average value, CV value.
2、Computer-type：Provide computer operation software, equipped with computer, color monitor and inkjet printer, display, printout graphics and data reports.
Realize the host panel key operation (microcontroller) and computer keyboard operation of two-way interactive control, can be selected according to need.
The computer adopts WINDOWS operating system.
The operation interface text can have Chinese and English bilingual options.
Data statistics include: strength, elongation, elongation rate, breaking time, breaking work, breaking strength of the maximum value, minimum value, average value, CV value, and so on.

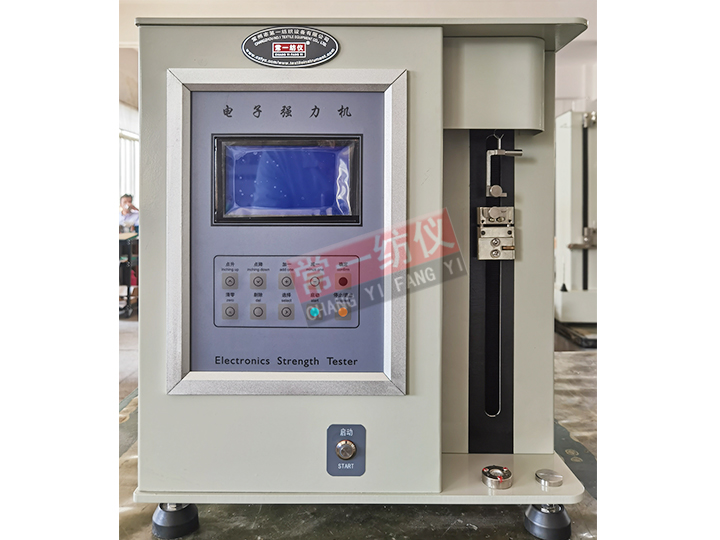

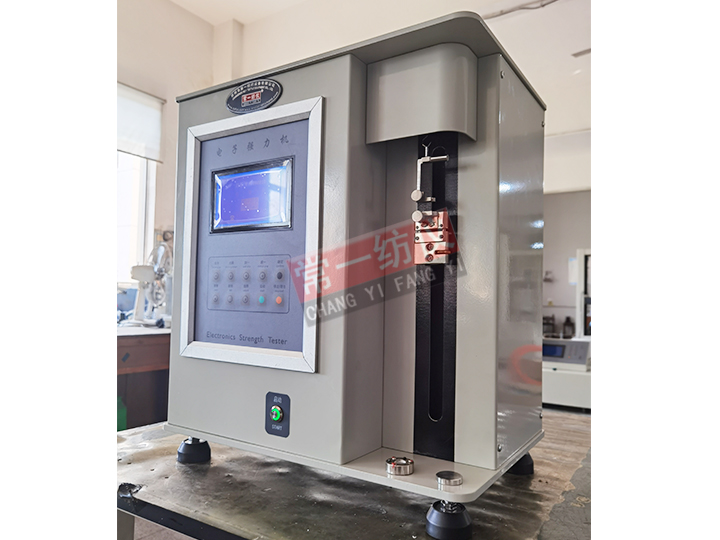

Appearance picture
