Instrument Usage

It is used to test the melting point of chemical fiber, polyester chips, pharmaceutical powder and other objects (except for dark opaque objects). Through the touch screen liquid crystal control instrument detection, analyze the object in the heating process of the heating curve and the light volume change curve, automatic judgment to determine the melting point, can also be determined through the microscope visual judgment to determine the melting point.

Main Technical Data

1、melting point test range: 50 ~ 350 ℃,

    Measurement error: <0.5 ℃,

    Minimum temperature reading: 0.1 ℃

    Rising temperature speed: 2, 3, 4, 5 ℃ / min (optional)

2、 melting mode: automatic melting and manual melting

3、output: TPUP-16A micro-printer, able to print the data of each test and any time within the 8 times of the arithmetic mean value.

4、Power supply: AC220V 50HZ

5、Dimensions: 430×320×200mm

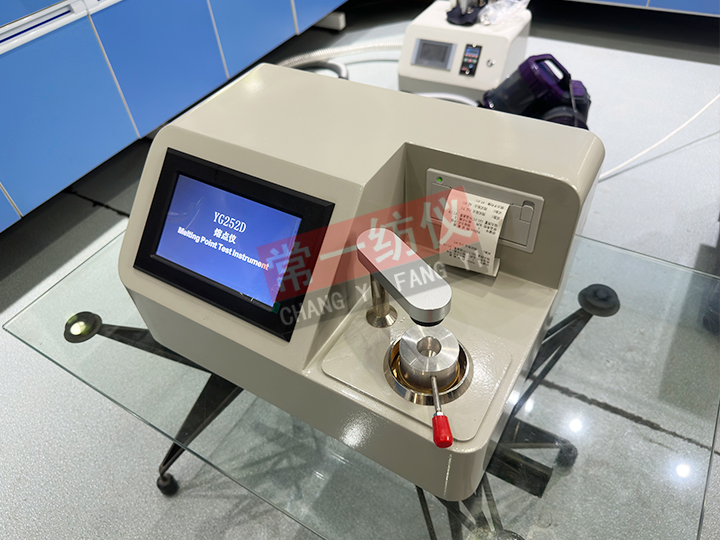

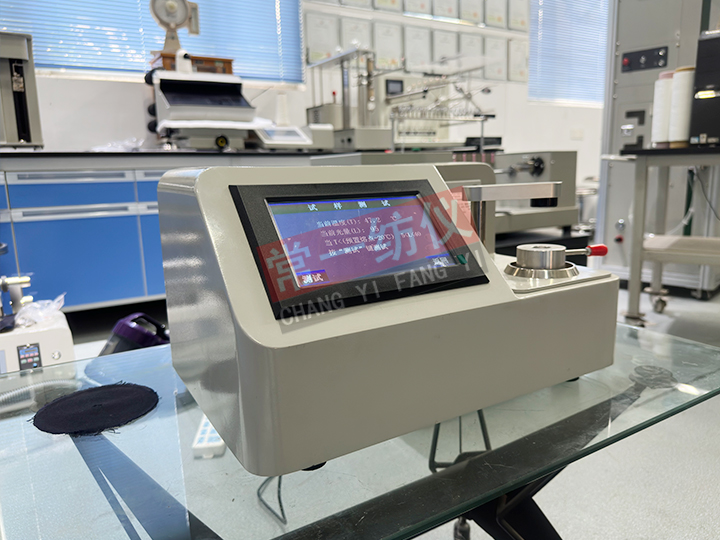

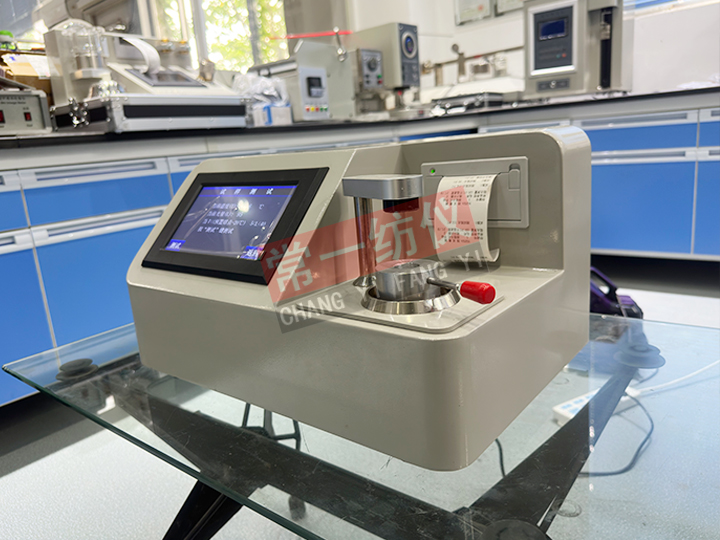

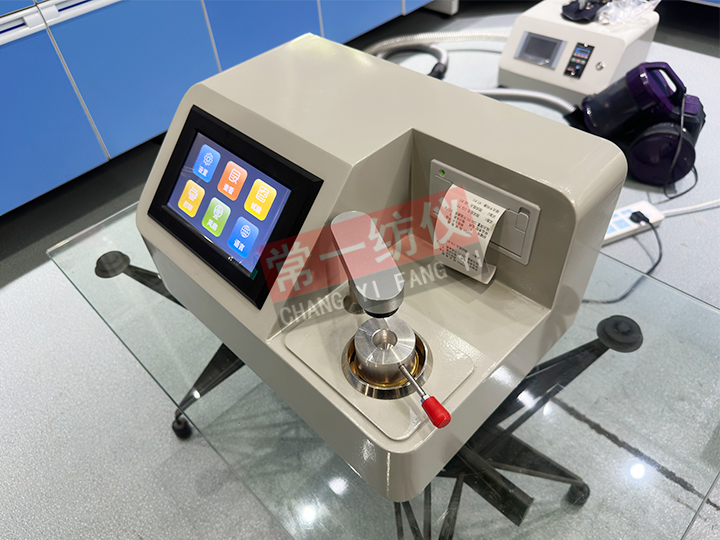

Instrument shape picture
