Instrument Purpose

This instrument employs microcontroller-based microcomputer control to achieve intelligent operation of the crimp elasticity tester. The measurement system applies load via a tension loader, while displacement length is counted by the microcontroller using pulse signals from a stepper motor. The instrument automatically measures, displays, and prints the crimp, crimp elasticity, crimp recovery rate, and their statistical values for fibers with a fineness of 1 to 22 dtex. Touchscreen control ensures simple and convenient operation.

Applicable Standard

GB/T14338-2022 “Test Methods for Crimp Properties of Chemical Fibers - Short Fibers”

Main Specifications and Technical Parameters

1. Load Range of Tension Loader:

Load Range (mN)    Graduation (mN)     Estimated Reading (mN)

    0–5.00                     0.01                         0.005

    0～10.00                  0.02                         0.01

    0～25.00                  0.05                         0.02

2. Initial Length: 20mm

3. Lower Holder Stroke: ≥30mm

4. Minimum displacement indication: 0.01mm

5. Displacement reading error: ≤0.05mm (within 10mm range)

6. Timing intervals: 0.5, 1, 2 min

7. Power supply: AC220V, 50Hz

8. Dimensions: 460×230×460mm

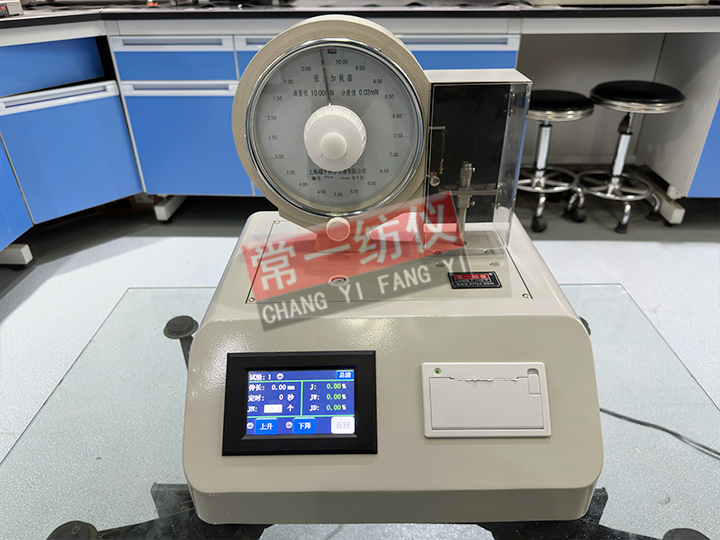

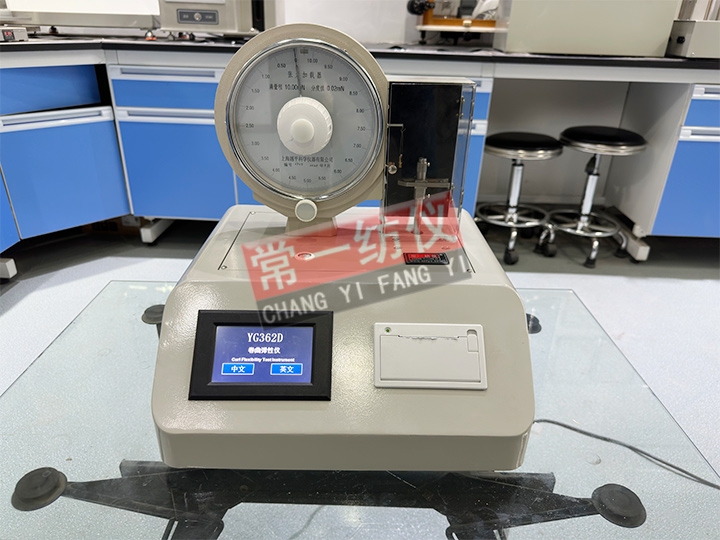

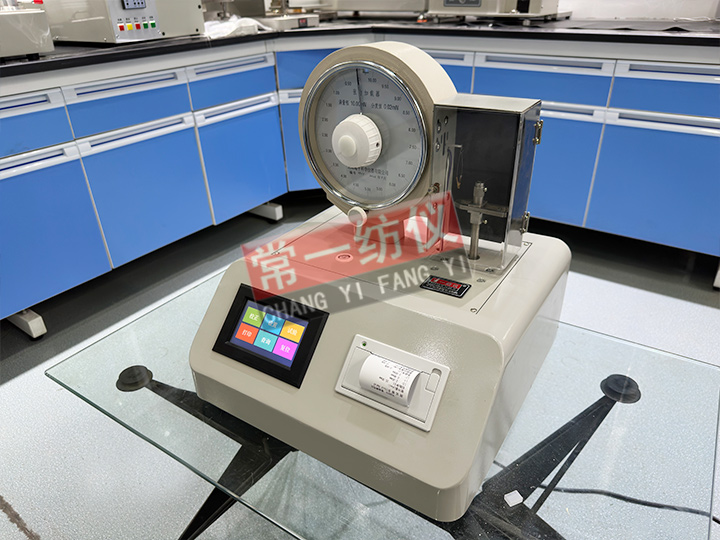

Instrument exterior image
