Usage

This instrument is used to determine the yarn density (or inch count) of various yarns for testing the strength of stranded yarns, and is also suitable for determining the yarn density of deformed filaments of chemical fiber filaments.

Applicable standards

GB/T4743 “Determination of yarn thread density Stranding method”;

GB/T14343 “Synthetic Fiber Filament Thread Density Test Method”;

B/T6838 “Test Method for Sewing Threads”;

ISO2060 “Determination of yarn thread density of rolled yarns (mass per unit length) Stranding method”;

FZ/T01035

FZ/T98006-2009

ASTM D 1907 “Test method for yarn count”. Test Method for Yarn Count by Stranded Yarn Method"

ASTM D2260

DIN53830

Main specifications and technical parameters

1, the number of test yarn tubes at the same time: 6, 8, 9, 10, 12 (user-selected);

2, the spacing of the yarn tubes: 65mm (6 spindles)

3, the perimeter of the yarn frame: YG086C/YG086G 1000 ± 1mm

           YG731D 1125 ± 1mm (reeling and sericity spinning)

           G086E 54 ± 1/16in or 1yard (export special)

4, the frame rotation speed: YG086C / YG086G 1000±1mm

           YG731D 1125 ± 1mm (reeling sericity spinning)

           YG086E 54±1/16in or 1yard (export) 4, frame rotation speed: 30 ~ 300r.p.m

5, the number of laps to choose from: 1 ~ 9999

6, shaking the yarn across the reciprocating width: 35mm

7, single shaking the yarn tension range: 0 ~ 100Cn

8, power supply: 220V, 50Hz

9, dimensions: YG086C-type 780 * 660 * 480mm

YG086E-type 820 * 660 * 550mm 10, instrument weight: YG731D-type 1125 ± 1mm (reeling silk spinning) YG086E-type 54 ± 1/16in or 1yard (export) 550mm

10, instrument weight: 80Kg

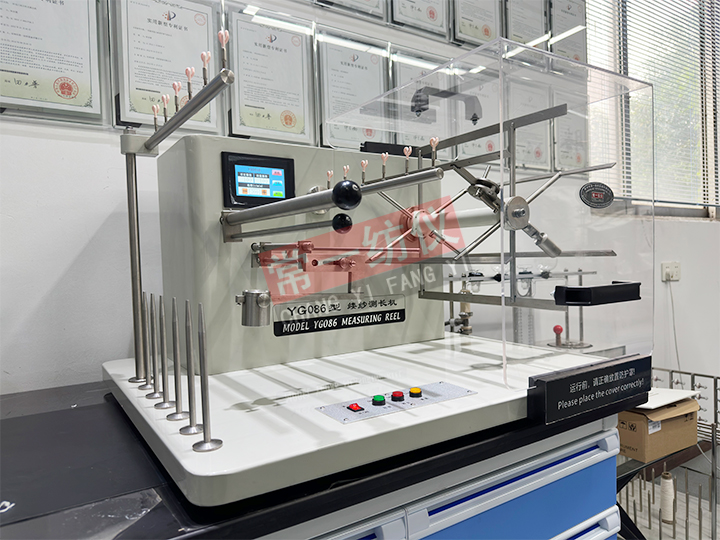

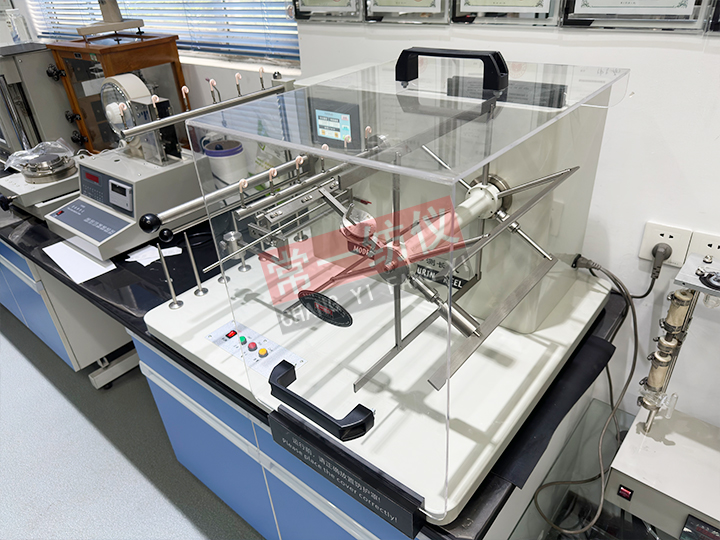

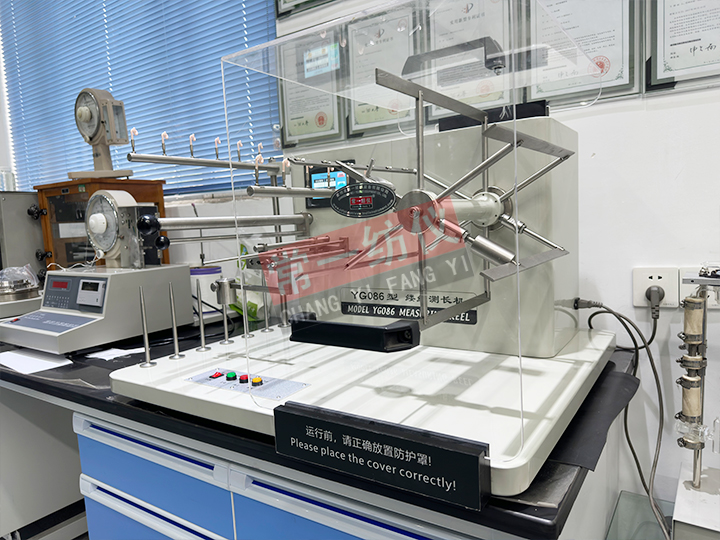

Instrument shape picture
