Instrument Application

To determine the tensile strength and elongation at break of individual yarns and fabrics.

Used to determine the tensile strength and elongation at break of various high-strength chemical fiber monofilaments, single yarns, ropes, threads, and linen; to test the tensile strength and elongation at break of various textiles, nonwoven fabrics, artificial leather, plastic flat yarns and woven plastics, zippers, and metal wires such as tungsten (molybdenum) wires. It is also used for tear tests, peel tests, elastic recovery tests, seam strength tests, elongation at a given load, and tensile strength at a given elongation tests.

Applicable Standards

GB/T14344, GB/T3916, ISO2062, GB/T 8696, ASTM D2256

GB/T 4181, GB 7690, GB/T 8946, GB/T 1040, GB/T 7690.3

GB/T 3923.1/2, FZ/T 70006, FZ/T 70007, FZ/T 01085, GB/T 13772.1/2/3, FZ/T 20019, FZ/T 01030, ISO, ASTM, JIS, BS, DIN, etc.

Main Specifications and Technical Parameters

Constant Rate of Elongation (CRE) principle, microcomputer control, LCD display with Chinese (English) interface, data reporting and graphical printing.

1. High-rigidity load frame configuration with precision preloaded ball screws.

2. Automatic gap positioning function.

3. AC servo drive unit, high-resolution digital closed-loop controller.

4. Modular test design, open data management.

5. Equipped with a thermal printer for rapid output of test results.

1. Maximum force ranges: 50 kg, 100 kg, 300 kg (to ensure accuracy, all ranges are subdivided).

2. Measurement range: 1–120%; resolution: 0.1 N/0.01 N; accuracy: 1%, 0.1% FS; load resolution: 1/50,000

3. Gripping distance: 20–500 mm, infinitely adjustable, digitally set, with automatic positioning.

4. Tensile speed: 10–1000 mm/min, increment: 1 mm/min, accuracy: 2%

5. Retraction speed: 10–1000 mm/min, increment: 1 mm/min, accuracy: 2%

6. Effective stroke: 900 mm, elongation resolution: 0.1/0.01 mm

7. Clamping method: Manual or pneumatic clamping

8. Unit conversion: N, cN, kN, kg, lb, etc.

9. Power supply: AC 220 V, 50 Hz, 450 W, 2 A

10. Dimensions: 865 × 430 × 1500 mm

11. Weight: 100 kg

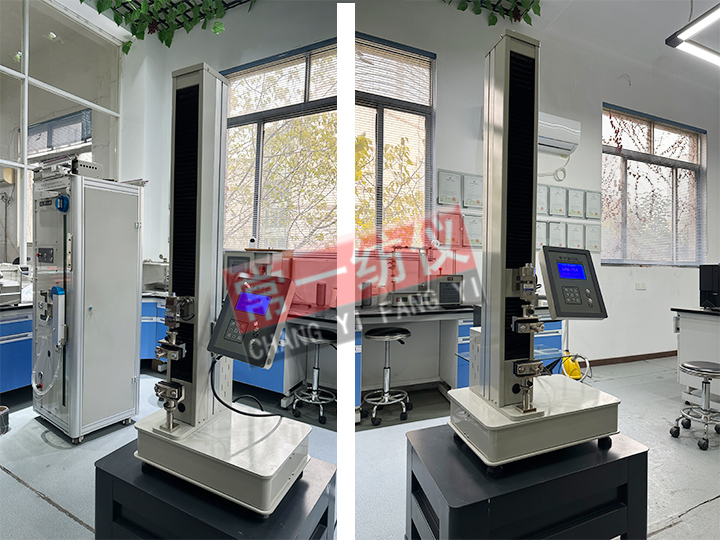

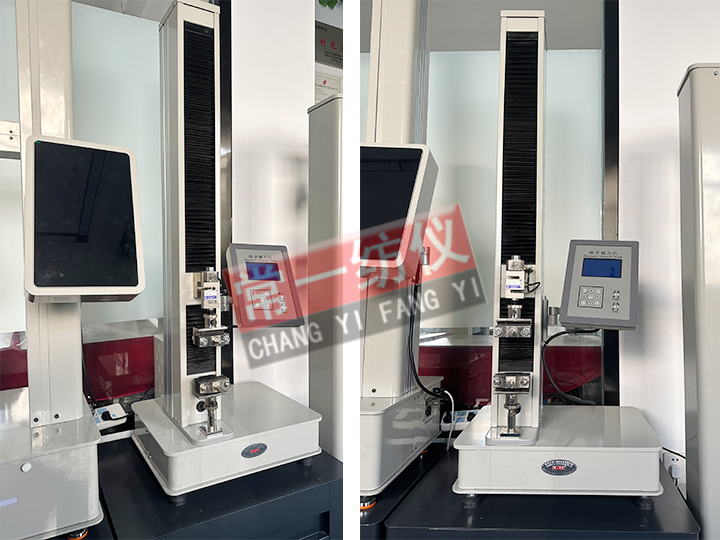

Instrument exterior image
