Instrument application

Used for testing abrasion resistance of all fabrics, leathers, carpets,rubbers, plastic sheets and other various materials.

Applicable standards

FZ/T01128-2014、GB/T30314-2013、IS05470-1、ASTMD3884、DIN53863.2.

Main Technical Data

1. Work disk diameter: Φ115 mm

2. Work disk speed: 70 rpm

3. Grinding wheel dimensions: Diameter Φ50 mm, thickness 13 mm

4. Counting method: Electronic counter with adjustable settings from 0 to 999,999

5. Pressure application method: Utilizes the self-weight of the pressure sleeve (250 cN) or additional weight combinations

6. Weight of weights:

Weight 1: 750 cN (calculated based on unit self-weight),

Weight 2: 250 cN,

Weight 3: 125 cN

7. Maximum sample thickness: 20 mm

8. Dust collector: Adjustable airflow

9. Maximum power consumption: 1400 W

10. Power supply: 220V ±10%, 50Hz, 60W

11. Dimensions: 520 × 370 × 360 mm (L × W × H)

12. Weight: 50 kg

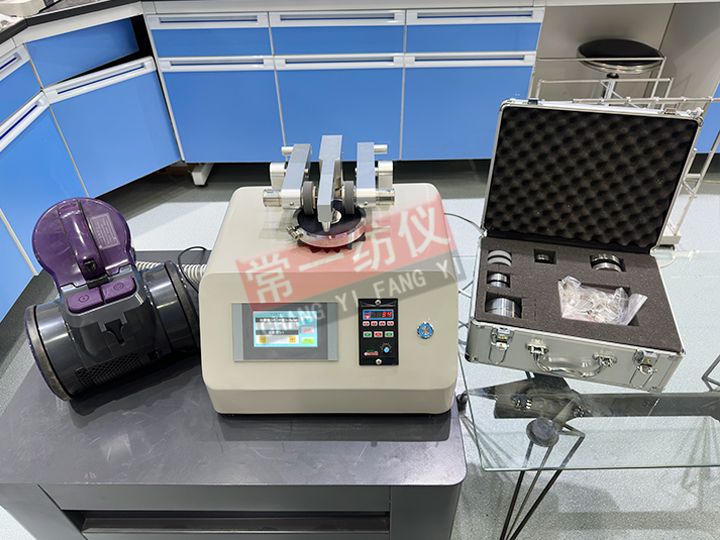

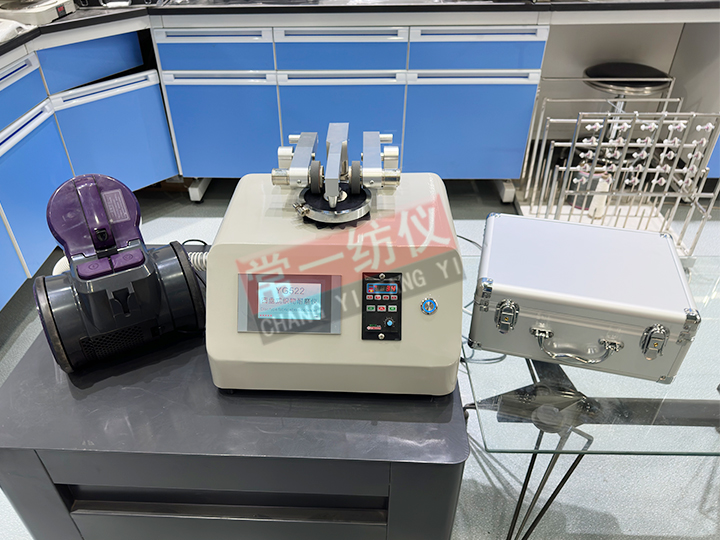

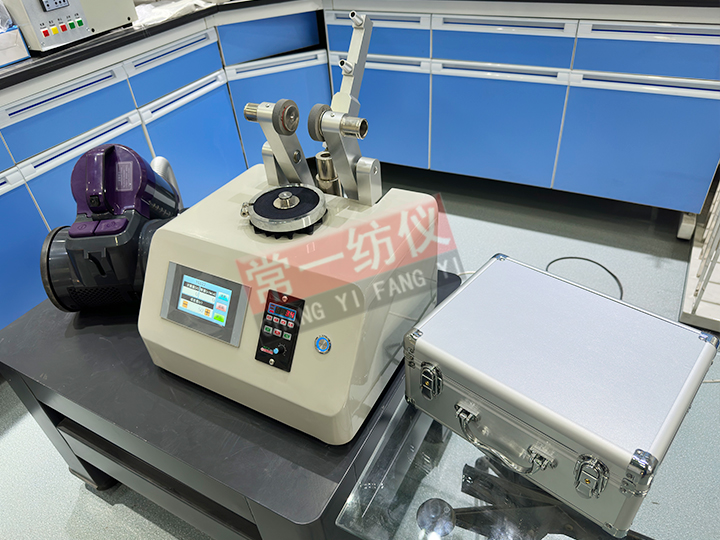

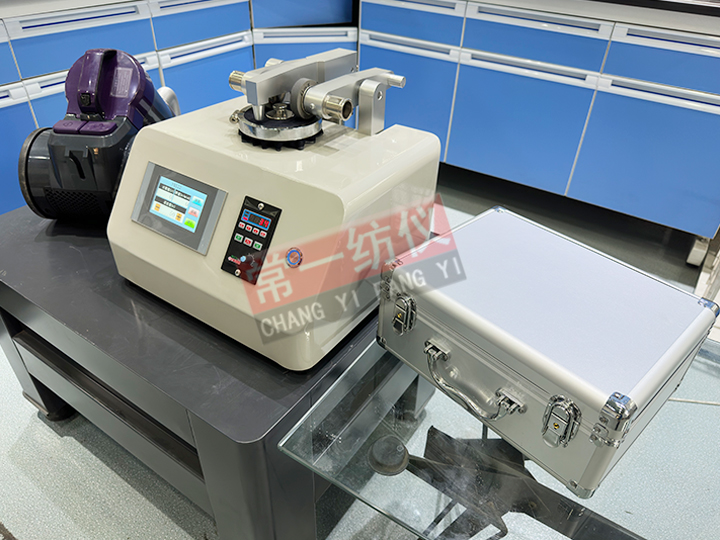

Instrument appearance pictures
