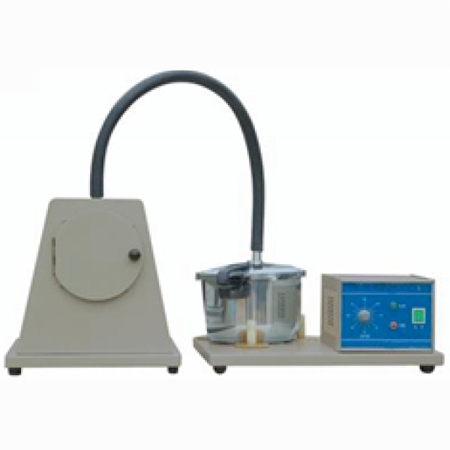

Name:YG742 Stream Contraction Tester
Keywords:Stream Contraction Tester ,Textile Instrument,Textile Testing Instrument
Description
It is suitable for the test of the size alteration of mach woven and knitted fabrics and those susceptible to stream treatment after being exposed to stream without being subject to stress.
Standards: ISO3005；FZ/T20021；IWS TM290；BS4323
Main Technical Data
| Sample frame size | 290×60×72mm |
| Operating pressure of stream | 101325Pa (One atmospheric pressure) |
| Steam rate | 70±14g/min |
| Inside steam cylinder size | Φ100×360mm |
| External Dimensions |
Main instrument:420×510×340mm Steam oven：365×450×775mm
|
| Sample length setting device | 250mm |
| Power source | AC220V， 50Hz 3KW |
