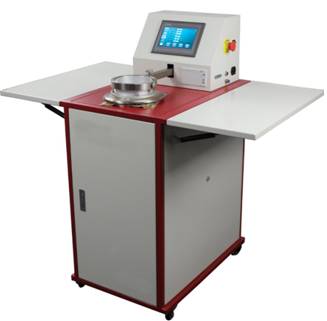

Name:Model YG461E Digital Fabric Air Permeabiliy
Keywords:Digital Fabric Air Permeabili,Textile Instrument,Textile Testing Instrument
Description
Used for the test of the air permeability of all kinds of machine fabrics, knitting fabrics and non-woven fabrics as well as industrial filtration paper.
Standards: GB/T 5453 ASTM D737、BS 5636、DIN 53887、AFNOR G07-111、EDANA 140.1、ISO 7231、ISO 9237、ISO 9073-15、JIS L1096-A、TAPPI T251、WSP 070.1.R3、EDANA 140.2-99
Main Technical Data
| Working pattern： | Pneumatic sensor measuring microcomputer control with digital display of testing results |
| Range of pressure difference： | 1～4000Pa |
| Air permeability range： | 0.1～12000 ±2% mm/s |
| Fabric thickness： | ≤12mm |
| Specimen area ＆value： | 5cm²、20cm²、50cm²、100cm²、Ф50mm（≈19.6cm²）、Ф70mm（≈38.5cm²） |
| Nozzle： | 0/Ф0.8 1/Ф1.2 2/Ф2 3/Ф3 4/Ф4 5/Ф6 6/Ф8 7/Ф10 8/Ф12 9/Ф16 10/Ф20 |
| Power source： | AC220V，4A，1.2KW，50Hz |
| External dimensions： | 1070×670×1080(L×W×H) |
| Weight： | 75Kg |
