Instrument Use
can be widely applied to the tensile test of various chemical fibers, wool, cotton and other single fibers. The breaking strength, elongation at break, fixed elongation load, fixed load elongation, modulus of elasticity and other performance indexes of various fibers. Under the condition of not exceeding the strength range of this instrument, it can also be used for the test of some non-textile fibers.

Applicable Standards
GB/T14337、GB/T9997、GB/T13835.5、 GB/T21120-2007
ISO5079、ISO11566
ASTM D3822
BS4029

Main Technical Data
1, test function: tensile rupture test (program and fixture), fixed-speed tensile, fixed elongation load, fixed load elongation, modulus of elasticity.
Maximum strength range are: 100CN, 200CN, 300CN, 500CN, 1000CN. range 2-120%, index value: 0.1cN (50cN the following index value is 0.01cN), precision: ≤ ± 0.5%, load resolution: 1/50000, sensor accuracy: ≤ ± 0.05% FS
Clamping distance minimum: 10MM Stepless adjustable, digital setting, automatic positioning.
Tension speed: 2-200MM/MIN, index value: 1MM/MIN, precision: 1%
Response speed: 2-200MM/MIN, index value: 1MM/MIN, precision: 1%
Effective dynamic range: 100MM/150MM, elongation resolution: 0.1MM
2, a variety of national standards, unit switching, please select:
GB,ISO,AATCC,BS, DIN,JIS etc. GB,ISO,AATCC,BS,DIN,JIS,etc.N,CN,KG,LB,IN,etc.
3、Above test function is pneumatic clamping
4、Power supply: 220V, 50HZ, 200W
5、Weight: 35KG
6、Dimensions: 370×300×550mm

Product Quotation
Touch screen computerized version of the mainframe 35000RMB + inkjet printer 500RMB + air pump 1000RMB

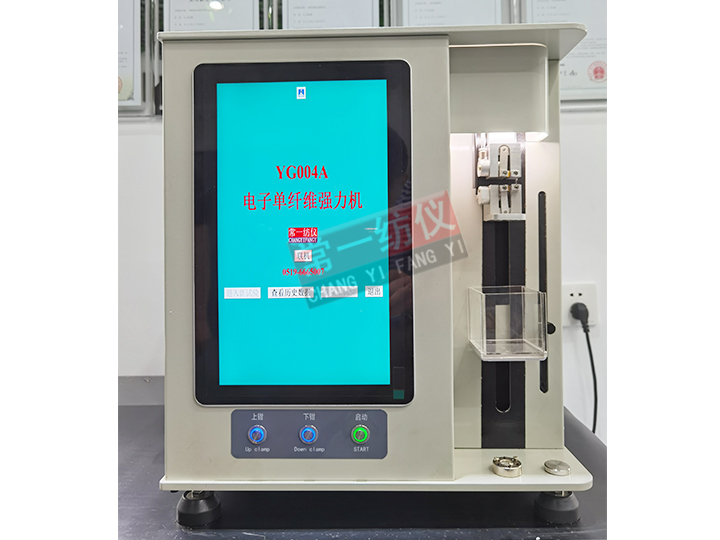

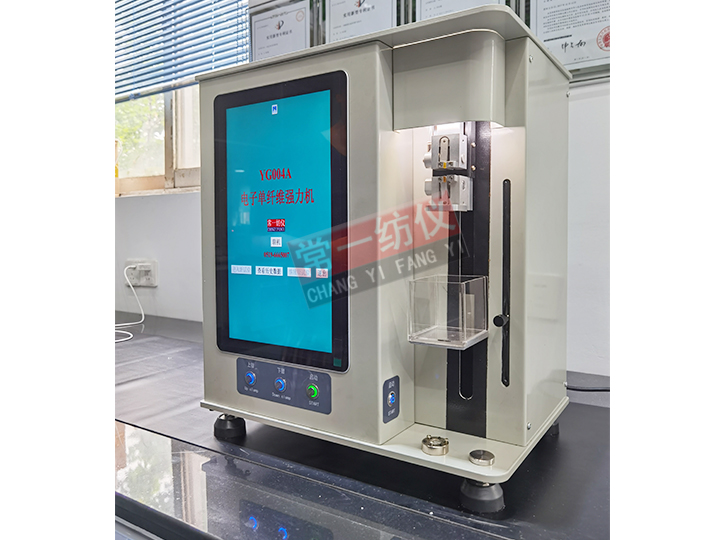

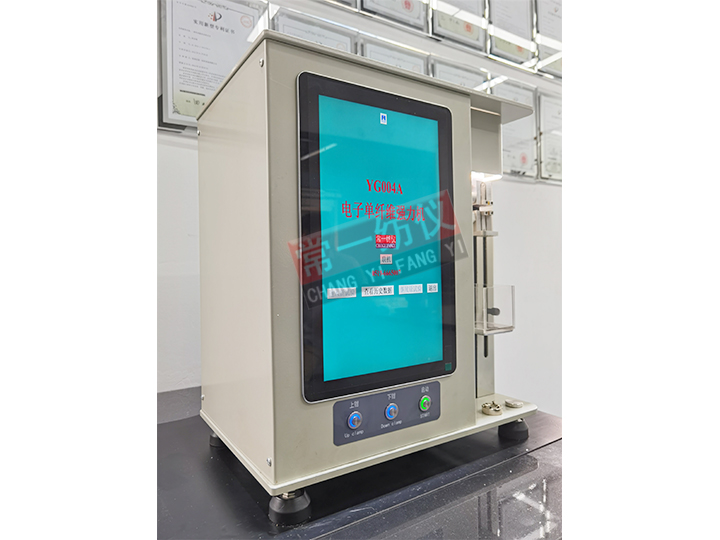

Instrument shape picture
