Y151 Fiber Friction Coefficient Tester (Touch Screen Printing Version)

Instrument Application

Used to determine the dynamic and static friction coefficients between various textile fibers, as well as between fibers and metal or nitrile rubber.

Applicable Standards

GB/T “Determination of Friction Coefficients of Chemical Fibers - Short Fibers - Winding Method”

Main Specifications and Technical Parameters

LCD touchscreen control, automatic data calculation, and printer output of test reports.

1. Torque balance capacity: 250 mg

2. Cylindrical friction roller diameter: Φ8 mm

3. Friction roller speed: 0.9, 12, 30, 50, 90, 220, 410, 720 rpm

4. Dimensions: L745 × W320 × H375 mm

5. Weight: 35 kg

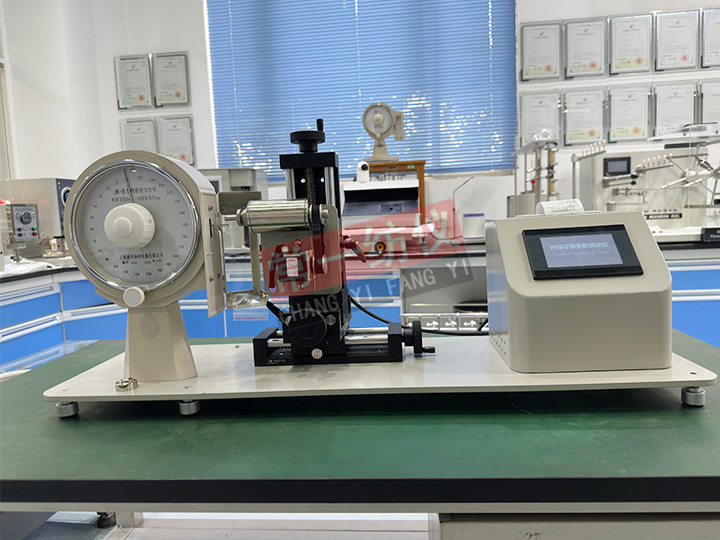

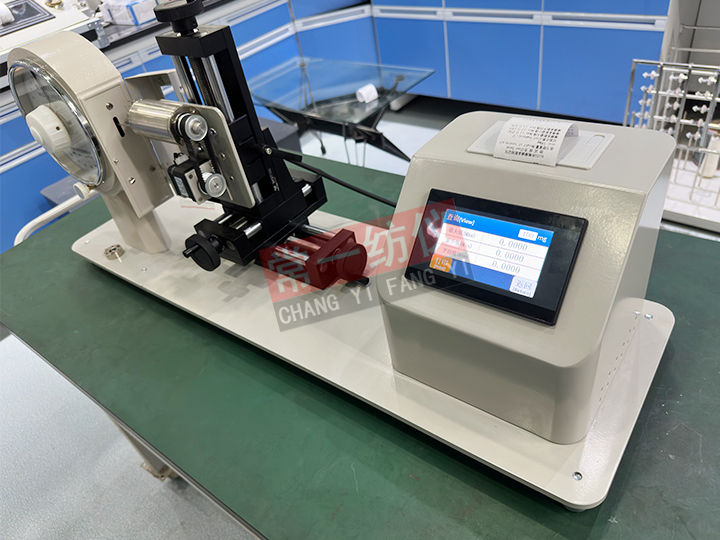

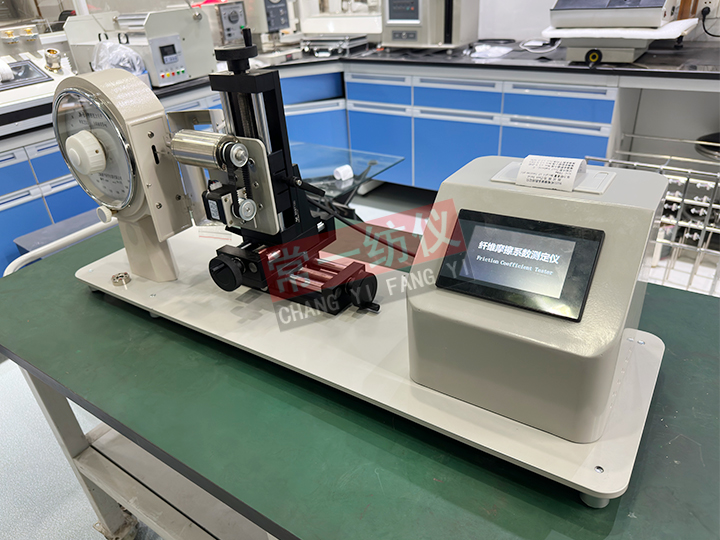

Instrument exterior image
