Instrument Usage

It is used to test and analyze the structural characteristics of unevenness and unevenness of strips in the processes of merging, roving, roving and spinning. Applicable to cotton, wool, chemical fiber, hemp and blended yarn strips. Adopting advanced computer control technology, the testing software is easy to operate and friendly interface.

Adopting advanced sensor detecting circuit, the detecting signal is more accurate and stable.

The traction mechanism adopts double driving mode, the yarn does not slip. The large size of the roller makes the rotational speed lower, and the unique vibration-damping design makes the transmission more stable; the roller can be automatically opened and closed, automatically retracted, and can be used in the other direction, which reduces the wear and tear of the yarn on the roller, and prolongs the service life of the roller.

Spectrogram can display the wavelength value, and the uneven curve can be scaled arbitrarily, which is easy to analyze; it has a larger data retrieval function.

Applicable standards
GB/T3292

Main specifications and technical parameters

Model:YG191X

Sliver slot:1

Roving slot:1

Spun yarn slot:2

Measurement range of yarn number：4tex~20Ktex

Test times of each:1 -30 times (times) optional (adjustable)

Sample test speed:4,8,25,50,100,200,400m/min

Sample test time:0.5,1,2.5,5,7.5,10,20. 30min Power source:AC2.1,2.5,2.5,5,7.5,10,20, 30min

Power source:AC220V 500W

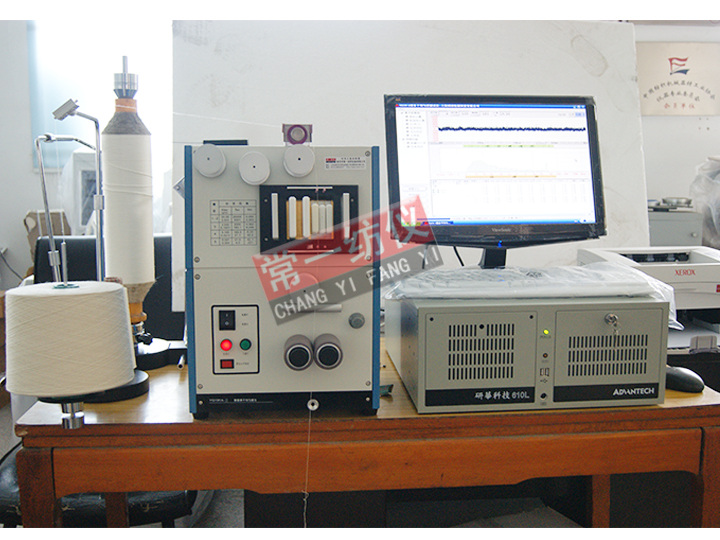

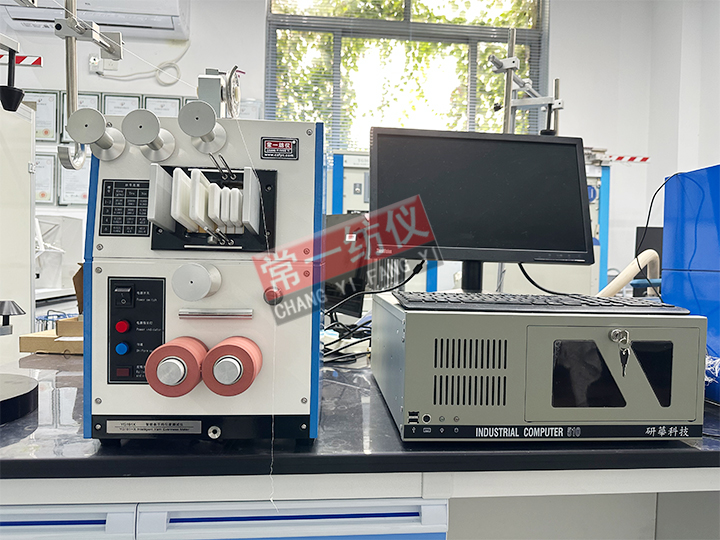

Instrument shape picture
